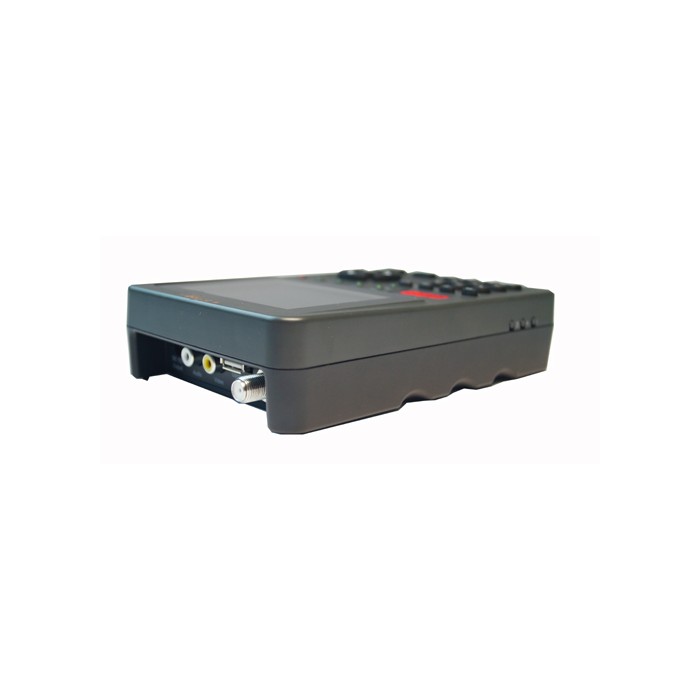

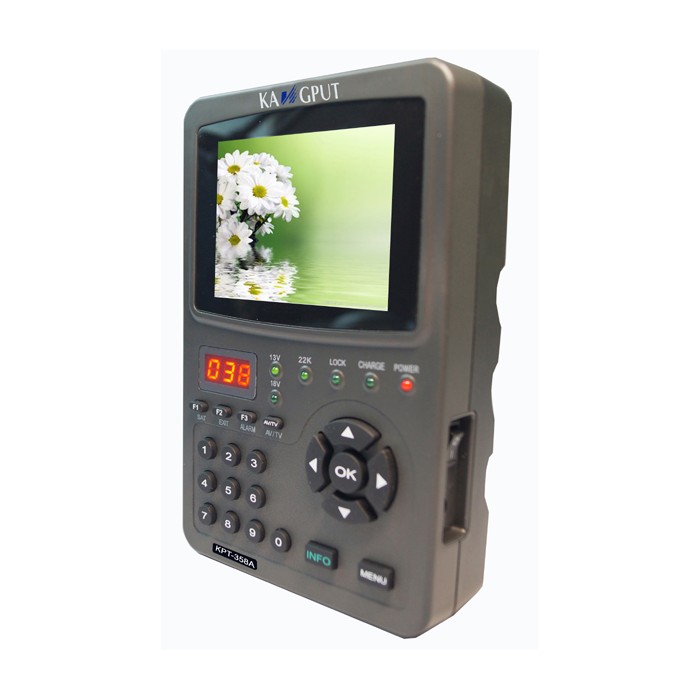

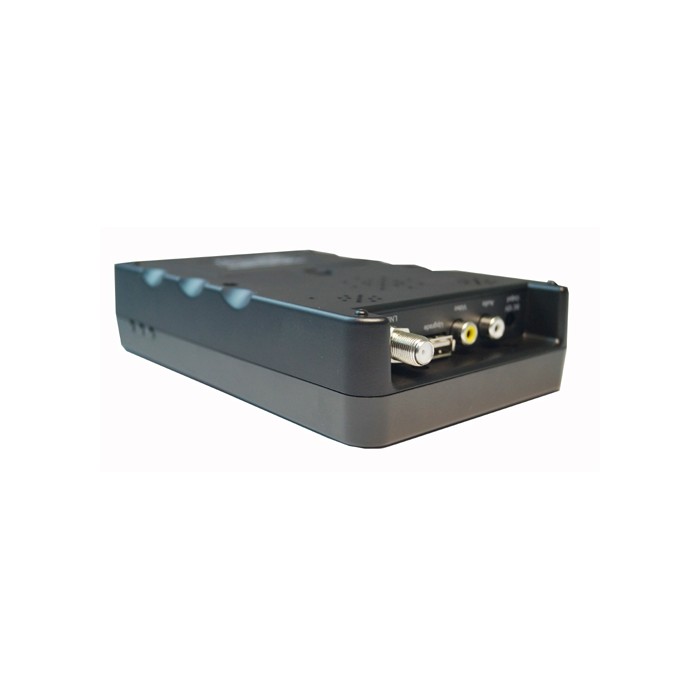

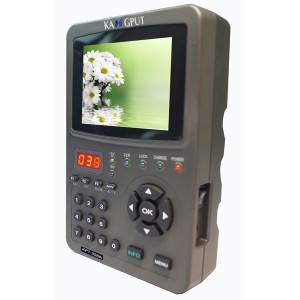

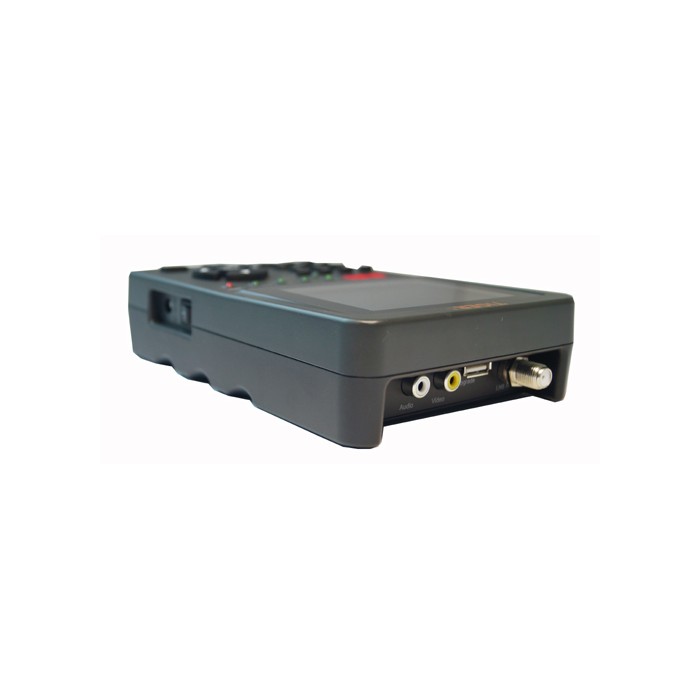

KPT-358A

*3.5 Inch High definition TFT LCD Screen which Can Play Channels(DVB-S).

*Live FTA Digital Picture and Sound,

*AV Output and AV Input function.

*Shows strength and quality readings,

*LED digital tube:Synchronous display,

*Sound and Light Alarm When Lock Signal(DVB-S).

*Dislay Screen Add Glass Protection,  Protect Be Press Fragile Or Screen Burst

More detailsInquiry


Specification

LCD Display

3.5”TFT LCD

Display size:73*51mm

Dots pixels:320*240(230400Pixes)

Digital Tube Display

LED

Display signal quality / Channel Number

Menu language

English /French / Russian / Arabic/Farsi/Portuguese/Turkey

Satellite signal

video decoding

DVB-S

signal test

DVB-S signal alarm & signal test.

LNB/Tuner Input

connector

F type male puly: 75Ώ (F)

Frequency range

950MHz-2150MHz

Signal level

-65dBm~-25dBm

Symbol rate

13/18V.max400mA

LNB switch control

22KHz

DiSEqC

1.0 1.1 1.2edition

Threshold

4.1dB;

Demodulator

Front end

QPSK(SCPC and MCPC compatible)

Symbol rate

2Mbps-45Mbps

System Resource

processor

32bit processor(200MHz)

SDRAM

16Mbyte

FLASH

4Myte

EEPROM

8Kbyte

Video Decoder

Video

MPEG-2 Main Level

Date Rate

Up to 15Mbps

Resolution

720*576,720*480

Video format

PAL/NTSC/SECAM

Audio

Voice patterns

Single sound channel

Sampling rates

32.44.1&48KHz

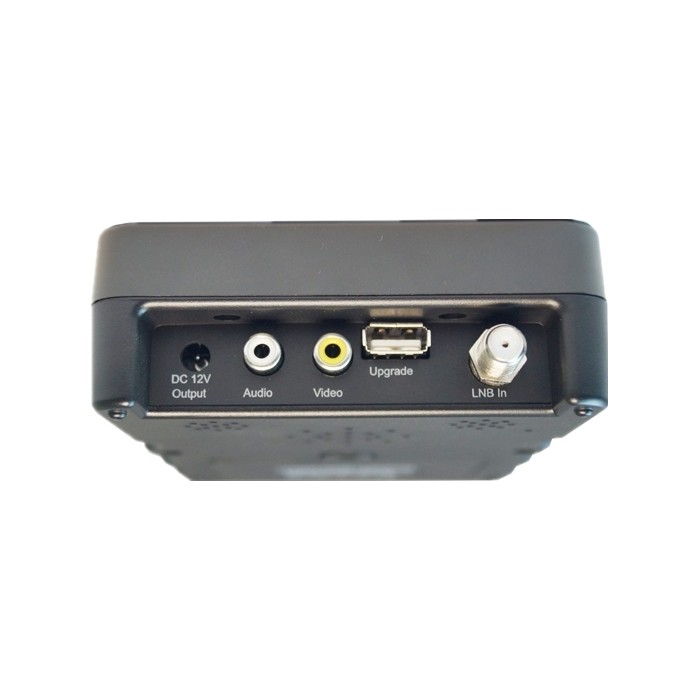

Panel Connectors

Connector

RS232

Power Supply

Lithium Battery

11.1V/2200mAh

Charger

In  AC100-220V Charge 13.5V/1.5A

Out   DC12V/1.5A

Physical Specification

Size

110*170*41mm

Net Weight

440g (including battery pack)



Accessories







DC13.5V 1.5A adapter

Bag

F fast line







Car Power

DC line

BNC to RCA (optional)
